01-14-2012, 02:04 PM | #1 |
Junior Member
Join Date: Jun 2005
Location: Newark, DE
Posts: 63
Likes: 2
Liked 11 Times in 2 Posts
|
Upgrading fuel system need recommendations
Have a 69 Nova currently with a 500hp 396 and a 750 double pumper. My current setup works for this combination but now I'm building a mild 509 that will make somewhere in the 700hp range and have a Dominator.
Currently I'm running a single Holley black pump with #10 line to a y-block sends 2 #6 lines to 2 holley regulators and then feeds the front and rear bowls of the carburetor. Below is a sketch of the system as it is now. As you can see, I'm looking to step into the 21st century with my fuel system. What are your recommendations for the new motor, I'm not sure that this setup will be enough to feed it. I searched around and it seemd like the magnafuel pumps are the way to go. Could someone give me a good pump/regulator recommendation? Also, do any of you route your fuel system this way? Does anyone use return lines? Thanks in advance!
__________________
Mario DiTeodoro III SST/SG1226 STK126M |
01-14-2012, 03:22 PM | #2 |
Member
Join Date: Jul 2008
Location: Greenwood, IN
Posts: 168
Likes: 0
Liked 0 Times in 0 Posts
|
Re: Upgrading fuel system need recommendations
This won't be a popular answer, but it will be truthful. You have all the fuel system you need with the black pump and your combo. If you do the fuel consumption equations to calculate the pounds per hour, you will see you have enough. Most people run way more pump than needed. I have a 572 that runs S/C in my altered that uses a black pump. In fact I actually put on a Jeg's 105gal./hr. pump at the US nationals a year ago, because my pump starting getting noisy and that was all I had. There was absolutely no change in ET in S/C. What I do like aboout the smaller pumps is that they don't pull that much current. If you want to upgrade I would look at the holley HP pump. Its cost effective and rated to 950 hp. And before everyone starts the acceleration argument, yes, my fuel cell is on back and I am pumping against the G-force of acceleration.
However, if you want to upgrade, you can;t go wrong with the Magna fuel, Aeromotive A2000 or the Weldon pumps. They are the cadillacs so to speak. But, you will need to utilize a return line system to use these pumps. One question I had on your drawing though, why two regulators? There are two outlets on a holley regulator and I run one to the front bowl and one to the rear. Just curious. Good Luck!
__________________
Ron Finney 396V S/C |
01-14-2012, 03:24 PM | #3 |
Junior Member
Join Date: Dec 2005
Location: monroe twp nj
Posts: 66
Likes: 0
Liked 1 Time in 1 Post
|
Re: Upgrading fuel system need recommendations

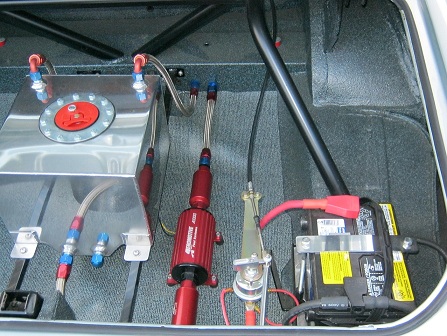

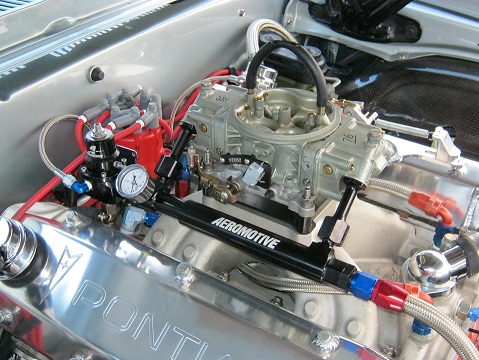

I went with all Aeromotive stuff on my '70 Nova. Their fuel log/return style regulator is awesome and really cleans up the engine compartment. A 2" throttle stop fits underneith nicely. I'm currently running the A1000 pump with great results and have been 9.80's @ 136 mph. After a full season, not even a hiccup.........
Bob |
01-14-2012, 03:48 PM | #4 |
Junior Member
Join Date: Jun 2005
Location: Newark, DE
Posts: 63
Likes: 2
Liked 11 Times in 2 Posts
|
Re: Upgrading fuel system need recommendations
Thats a good question Bob. When I got the car, it always had 2 regulators on it, so I left it alone.
Does Aeromotive have routing instructions for plumbing a return system?
__________________
Mario DiTeodoro III SST/SG1226 STK126M |
01-14-2012, 04:01 PM | #5 |
Junior Member
Join Date: Jun 2005
Location: Newark, DE
Posts: 63
Likes: 2
Liked 11 Times in 2 Posts
|
Re: Upgrading fuel system need recommendations
Never mind, found it.
__________________
Mario DiTeodoro III SST/SG1226 STK126M |
01-14-2012, 06:42 PM | #6 |
Member
Join Date: Dec 2003
Location: Brownsburg,Indiana
Posts: 326
Likes: 0
Liked 0 Times in 0 Posts
|
Re: Upgrading fuel system need recommendations
Just my opinion- The Filter should always be installed before the Pump.
__________________
Chuck Westcott- S/C -S/G 225 |
01-14-2012, 07:19 PM | #7 |
VIP Member
Join Date: Jun 2006
Posts: 3,372
Likes: 409
Liked 300 Times in 160 Posts
|
Re: Upgrading fuel system need recommendations
after talking to Aeromotive their recommendation regarding return line/by pass regulators is unless you are making about 900+ HP , have multiple carbs or running a Nitrous system it is not necessary---one thing that does happen tho is by using a return line you are A) heating the fuel B) aerating the fuel--- because of A&B most cars in their(Aero) opinion do not need a bypass/return line---Because you have the tank in the rear in order to hav ample fuel supply I would run a -12 line to the reg --eliminate the Y and then run a -10 or at the minimum a -8 to each float bowl---as for a pump a Aeromotive/Weldon/Magnafuel will work just fine---- watch the current(Amp) draw on the pump you decide on--- stay away from Barry Grant and some of the Holleys they draw lots of Amps!!!!!
|
01-14-2012, 07:25 PM | #8 |
VIP Member
Join Date: Jun 2006
Posts: 3,372
Likes: 409
Liked 300 Times in 160 Posts
|
Re: Upgrading fuel system need recommendations
that should be 900 HP OR Nitrous OR multiple carbs not all 3--just ONE of those situations then MAYBE a return/bypass line is called for
|
01-14-2012, 09:19 PM | #9 |
Member
Join Date: Dec 2003
Location: Brownsburg,Indiana
Posts: 326
Likes: 0
Liked 0 Times in 0 Posts
|
Re: Upgrading fuel system need recommendations
Remember one thing ! Weldon is Guaranteed for Life and that means as long as you own it period ! Call Jim Craig @ Weldon and ask Him for a second opinion, You'll be glad you did !
__________________
Chuck Westcott- S/C -S/G 225 |
01-15-2012, 11:06 AM | #10 | |
Banned
Join Date: Feb 2008
Posts: 852
Likes: 0
Liked 0 Times in 0 Posts
|
Re: Upgrading fuel system need recommendations
Let's see a #8 about .400 dia for a .120 neddle & seat?
Quote:
|
|
|
|
