Old 09-11-2023, 08:54 PM   #1
Rose Racing
Member

Rose Racing's Avatar

Join Date: Jan 2012
Location: Sandusky, Ohio
Posts: 309
Likes: 50
Liked 113 Times in 47 Posts
Default Ignition Box Mounting

Where are you guys mounting your ignition boxes on your Stockers? Just looking for ideas. Thank you
Rose Racing is offline   Reply With Quote
Old 09-11-2023, 10:24 PM   #2
Mike Gray
Member

Mike Gray's Avatar

Join Date: Oct 2006
Posts: 473
Likes: 176
Liked 366 Times in 106 Posts
Default Re: Ignition Box Mounting

I’ve seen a lot of Chevy’s in the passenger footwell. Probably goes with the shorter wiring and don’t get it wet comments. I have a Ford and I think it’s going under the hood when I mount it but like you I’m open for ideas?
Also check out Bobby Fazio video interviews where he shows the interior, under hood and in the truck of a lot of cars, some good stuff there!
__________________
Mike 7570 A/SA

Last edited by Mike Gray; 09-11-2023 at 10:36 PM. Reason: Added
Mike Gray is offline   Reply With Quote
Old 09-11-2023, 10:34 PM   #3
Mark Yacavone
Veteran Member

Mark Yacavone's Avatar

Join Date: Mar 2002
Location: Miles From Nowhere
Posts: 7,110
Likes: 2,312
Liked 4,074 Times in 1,528 Posts
Default Re: Ignition Box Mounting

6AL is above>




__________________
If we weren't all crazy, we would go insane
-J. Buffet

Last edited by Mark Yacavone; 09-18-2023 at 11:11 AM.
Mark Yacavone is offline   Reply With Quote
Old 09-15-2023, 03:46 AM   #4
GTX JOHN
VIP Member

Join Date: Jun 2009
Location: Boulder City, Nevada 89005
Posts: 2,458
Likes: 2,022
Liked 1,694 Times in 535 Posts
Default Re: Ignition Box Mounting

Our mopars are mounted behind the glove box
or right below in that general area.
__________________
John Irving
741 Stock
741 Super Stock
GTX JOHN is offline   Reply With Quote
Old 09-15-2023, 04:42 AM   #5
Henrys Toy
Member

Join Date: Oct 2020
Posts: 201
Likes: 2,681
Liked 396 Times in 135 Posts
Smile Re: Ignition Box Mounting

Quote:
Originally Posted by GTX JOHN View Post
Our mopars are mounted behind the glove box
or right below in that general area.
Good morning to all,
I mounted my MSD on the passenger side toe board. Mostly because its convenient in case I have to service it. MSD recommends that the box/ ignition controls be placed where air can move around it and cool it. That's why they don't recommend putting it a "glove box" or enclosed location.

Respectfully,
Henry Kunz 1534 H/SA
Henrys Toy is offline   Reply With Quote
Old 09-15-2023, 02:07 PM   #6
GTX JOHN
VIP Member

Join Date: Jun 2009
Location: Boulder City, Nevada 89005
Posts: 2,458
Likes: 2,022
Liked 1,694 Times in 535 Posts
Default Re: Ignition Box Mounting

Behind our Glove box door there is no longer a real actual
glove box or a heater box. It is totally open to air flow.
Sorry I was not clearer. It is protected from weather
inside car and some of outside heat out is mitigated a bit
as we live in Nevada.
__________________
John Irving
741 Stock
741 Super Stock

Last edited by GTX JOHN; 09-18-2023 at 01:44 PM.
GTX JOHN is offline   Reply With Quote
Old 09-18-2023, 10:34 AM   #7
VE6DRW
Junior Member

VE6DRW's Avatar

Join Date: Apr 2016
Posts: 13
Likes: 3
Liked 15 Times in 5 Posts
Default Re: Ignition Box Mounting

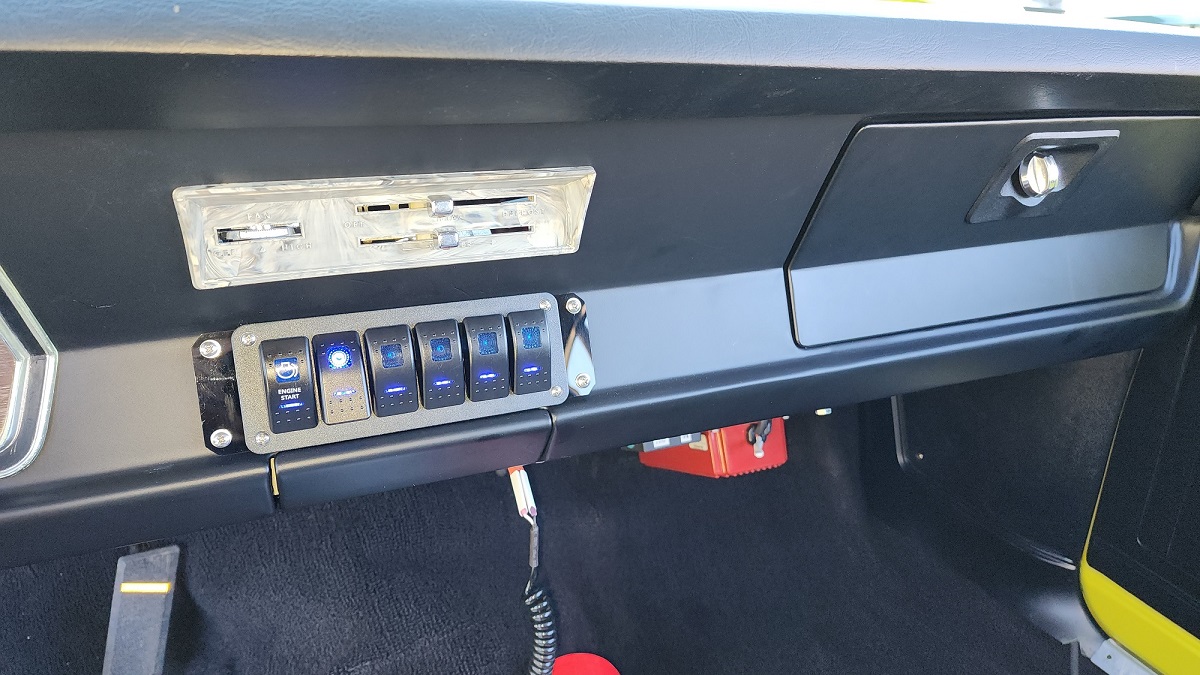

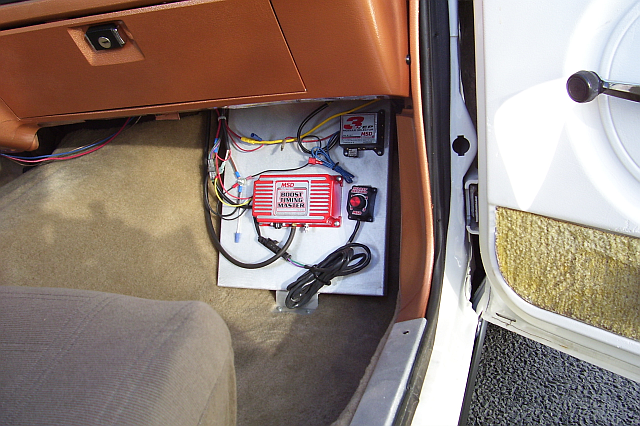

IMHO, I put mine on the passenger side underneath the glove box on a hinged panel. Relay switch panel on the topside with all race-related wiring - MSD components on the underside. Coil mounted on the inside of the firewall just above the hinged panel.


Hinged panel allows for easy access while keeping it out of the way when racing. MSD on the underside allows easy access to MSD box settings and RPM chips (if you use them).
Attached Thumbnails
Click image for larger version

Name:	Switch panel top small.jpg
Views:	245
Size:	344.1 KB
ID:	68593   Click image for larger version

Name:	Switch panel bottom small.jpg
Views:	218
Size:	291.1 KB
ID:	68594
__________________
Dave White
NHRA Stock/SS 606
VE6DRW is offline   Reply With Quote
Old 09-18-2023, 05:03 PM   #8
Mike Gray
Member

Mike Gray's Avatar

Join Date: Oct 2006
Posts: 473
Likes: 176
Liked 366 Times in 106 Posts
Default Re: Ignition Box Mounting

Quote:
Originally Posted by VE6DRW View Post
IMHO, I put mine on the passenger side underneath the glove box on a hinged panel. Relay switch panel on the topside with all race-related wiring - MSD components on the underside. Coil mounted on the inside of the firewall just above the hinged panel.


Hinged panel allows for easy access while keeping it out of the way when racing. MSD on the underside allows easy access to MSD box settings and RPM chips (if you use them).
Dave gets my vote, very nice. Do you hire out? Lol
__________________
Mike 7570 A/SA
Mike Gray is offline   Reply With Quote
Liked
Old 09-18-2023, 08:16 PM   #9
VE6DRW
Junior Member

VE6DRW's Avatar

Join Date: Apr 2016
Posts: 13
Likes: 3
Liked 15 Times in 5 Posts
Default Re: Ignition Box Mounting

Quote:
Originally Posted by Mike Gray View Post
Dave gets my vote, very nice. Do you hire out? Lol

I can barely afford myself :-) All for the love of the hobby
__________________
Dave White
NHRA Stock/SS 606
VE6DRW is offline   Reply With Quote
Liked
Old 09-20-2023, 01:12 PM   #10
Andy Friar
Member

Andy Friar's Avatar

Join Date: Aug 2013
Location: Howell, MI
Posts: 239
Likes: 657
Liked 199 Times in 69 Posts
Default Re: Ignition Box Mounting

Quote:
Originally Posted by GTX JOHN View Post
Behind our Glove box door there is no longer a real actual
glove box or a heater box. It is totally open to air flow.
Sorry I was not clearer. It is protected from weather
inside car and some of outside heat out is mitigated a bit
as we live in Nevada.
We did the same. Mounted the shift light dial on the inside of the glovebox door too. We were hesitant to put it on the floor or kick panels with kids and friends riding in the car for warmup and heading to the lanes.

https://www.classracer.com/classforu...7&postcount=84
__________________
Andy Friar
Andy Friar is offline   Reply With Quote
