4GC Air Cleaner base

[dug283]

Originally Posted by FED 387

Thanx Philbilly---- I have a few left if anybody needs one ---FED387

Hi FED387,

email me at dug3119@yahoo.com

[FED 387]

anybody has any interest please email me @ rull2843@yahoo.com my PM box is getting full--FED387

[philbilly]

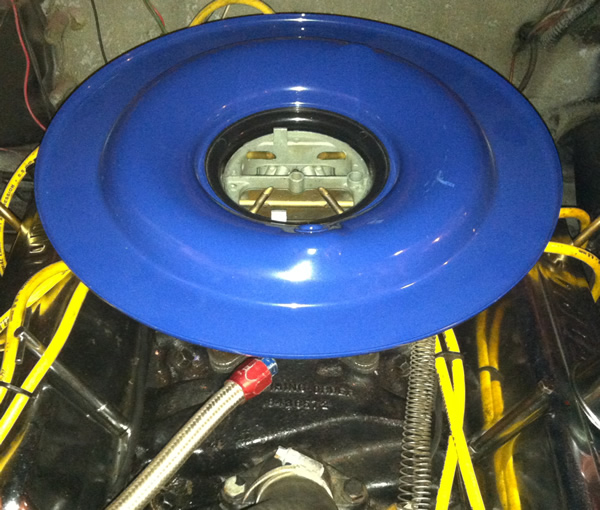

Fed I sent you some pics via email hope you get them. I would have posted here but dont really know how. you can post them up if you want.

[FED 387]

got em thanx

[FED 387]

OK --HOLD OFF on the bases for a second I have promises for all of them at this point --trying to get some more made up as we speak---will keep everyone informed---thank you for your interest---if you still want one please email me @ rull2843@yahoo.com and I will get back to you as to when more will be available-- Some have asked if these will fit a Holley/QuadraJet/Thermoquad-- carb--- I'm not making any promises but these are the measurements of the bases
14 inches ODof the pan
1 3/8 inches high maximum height of the pan
5 1/8 inches ID of the center hole in the pan
5 1/8 inches OD down to 4 7/32inches ID of the spacer that goes in the pan
approx 1 inch height of the spacer installed - so it raises the air pan up from the carb 1 inch
not sure if linkage/fuel inlets etc will fit other than a 4GC you will have to figure that out !!!
Thanx FED387

[FED 387]

OK---I will have more in stock end of next week-- ALSO for anybody that wants to use one of these on a Holley/ Quadra Jet/ Thermo Quad carb I have a limited amount of risers that will space the air pan up/off from the carb to clear any linkage fuel line problems that might arise---they are 5 1/8 inch inside diameter & they will be in 1/2 inch increments that is 1/2 high---1inch high ---1 1/2 inch high ---2 inch high---these will fit directly to the base plate and sit on top of the carb---Thanx FED 387

[dug283]

Received mine yesterday, can't wait to try it out in a couple of weeks. Thanks.

[dug283]

Originally Posted by philbilly

I made my first qualifing hit this week in gainsville without the base and my car went 7.54and a 12.12. On the second hit I installed the $40 base plate and my car went a 7.46 and 12.03. best 40 bucks i think i ever spent. I was having some issues with rpms so I was only going to the 1000 ft butThere is a solid tenth in the long track with one of these bases. This test was on my 283 chevy 2

Hi Philbilly, How did you secure it to your carb? Thanks

[philbilly]

I drilled four small holes at the position of the valve cover T. I zip tied at first but have carb springs that attach it. Seems to hold and easily removed

[Jim Woods]

Fed i tried to email , it keeps coming back , my mail is fastcars52@netzero.com thanks jim woods
