12 bolt pinion shim

Dirk Olson · 05-30-2023, 01:17 PM

.026 to .028 will get you close. Remember when setting a used gear set that it is highly possible that you will not see a good pattern. you can get close adjust backlash a little on the loose side monitor noise on coast adjust if necessary.

Alan Nyhus · 05-30-2023, 05:54 PM

Doing a new set, .030-.032 is my default. On a used set, I'll hedge thinner by a couple thou. and pay more attention to the coast side. A bit of red Loctite on the pinion shaft where the front bearing registers and eliminate the crush sleeve.

3 window · 05-31-2023, 09:04 PM

Thanks everyone. We’re on the right track for sure. I set it up with a .030 and based on the master housing depth of 4.670, it’s dead nuts on (pinion depth of 2.755 plus the thickness of the pinion head 1.915 equals 4.670).

Glenn Briglio · 06-01-2023, 06:46 AM

Quote:

Originally Posted by 3 window

Thanks everyone. We’re on the right track for sure. I set it up with a .030 and based on the master housing depth of 4.670, it’s dead nuts on (pinion depth of 2.755 plus the thickness of the pinion head 1.915 equals 4.670).

That's fine but pattern and backlash are what matter.

3 window · 06-02-2023, 08:15 PM

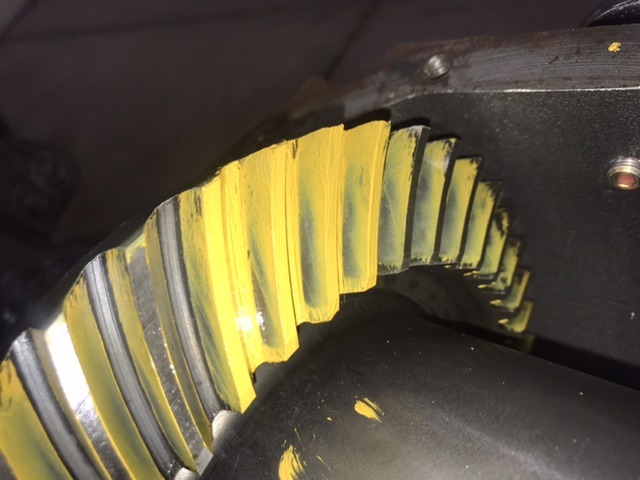

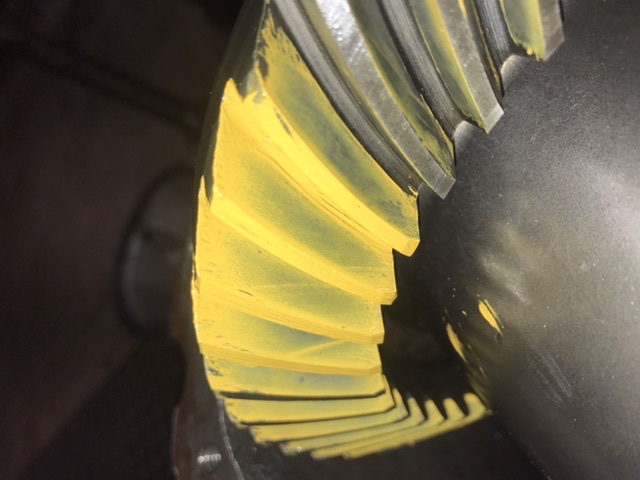

So here we are at .030 shim and .0075 backlash. This gear is used and from ‘66 so it’s got some miles on it.

Mark Yacavone · 06-04-2023, 11:03 PM

Don't know what you're doing with this car but it's probably a hair deep.
I'd try a .027-.028 if you're not in a big hurry. ;-)

3 window · 06-06-2023, 08:29 PM

Just drove it. Quiet as a church mouse. Thanks everyone.
