Welding tips and bracing of axle tubes for factory 12 bolt h
Hey Guys,
I am looking for welding tips and bracing of axle tubes for factory 12 bolt housing - where tubes join the pumpkin and as fully assembled or Probably has to be completely disassembled? Thanks, Craig |
|
|
|
07-21-2025, 02:31 PM
|
#2 |
|
VIP Member
Join Date: Mar 2007
Posts: 2,445
Likes: 614
Liked 1,919 Times in 576 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
Find a good welder and have the tubes welded to the center section all the way around. Bracing can be accomplished with a LPW cover with the bracing option.
__________________
Mike Pearson 2485 SS |
|
|
|
| Liked |
|
07-21-2025, 05:27 PM
|
#3 |
|
Junior Member
Join Date: May 2007
Location: Iowa
Posts: 40
Likes: 0
Liked 8 Times in 7 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
What successes or limits have others had with a Tubes Welded Ladder bar 12 bolt = limits of factory Tubes strength?
Thanks, Craig Last edited by CraigG; 07-21-2025 at 05:28 PM. Reason: needed |
|
|
|
|
07-21-2025, 06:15 PM
|
#4 |
|
VIP Member
Join Date: Oct 2002
Location: On a hilltop in Pa.
Posts: 4,491
Likes: 3,594
Liked 7,708 Times in 1,736 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
Unless you're not putting a lot of power through this 12 bolt, I wouldn't use a stock housing. This is from my own personal experience. The axle tubes won't handle lots of power.
__________________
Billy Nees 1188 STK, SS I'm not spending 100K to win 2K |
|
|
|
| Liked |
|
07-22-2025, 10:15 PM
|
#5 |
|
Junior Member
Join Date: May 2007
Location: Iowa
Posts: 40
Likes: 0
Liked 8 Times in 7 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
Thank you - I will probably get the welding of the tubes and the LWP cover with the brace.
|
|
|
|
|
07-23-2025, 10:07 AM
|
#6 |
|
Live Reporter
Join Date: Oct 2004
Location: Hickory, Ky
Posts: 10,633
Likes: 1,928
Liked 10,687 Times in 2,225 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
Keep an eye on pinion angel if it changes the tubes are twisting.
|
|
|
|
| Liked |
|
07-23-2025, 11:03 AM
|
#7 |
|
VIP Member
Join Date: Oct 2002
Location: On a hilltop in Pa.
Posts: 4,491
Likes: 3,594
Liked 7,708 Times in 1,736 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
Tubes that are welded to the center section shouldn't twist BUT the stock tubes will tear either at the weld or at the spring mounting point.
__________________
Billy Nees 1188 STK, SS I'm not spending 100K to win 2K |
|
|
|
| Liked |
|
07-23-2025, 12:02 PM
|
#8 | |
|
VIP Member
Join Date: May 2002
Location: Shelby, NC
Posts: 1,822
Likes: 2,166
Liked 2,350 Times in 553 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
Quote:
__________________
Daren Poole-Adams NHRA Stock/SS 2007 |
|
|
|
|
| Liked |
|
07-23-2025, 09:06 PM
|
#9 |
|
Member
Join Date: Jul 2006
Location: Kansas City
Posts: 410
Likes: 126
Liked 129 Times in 41 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo

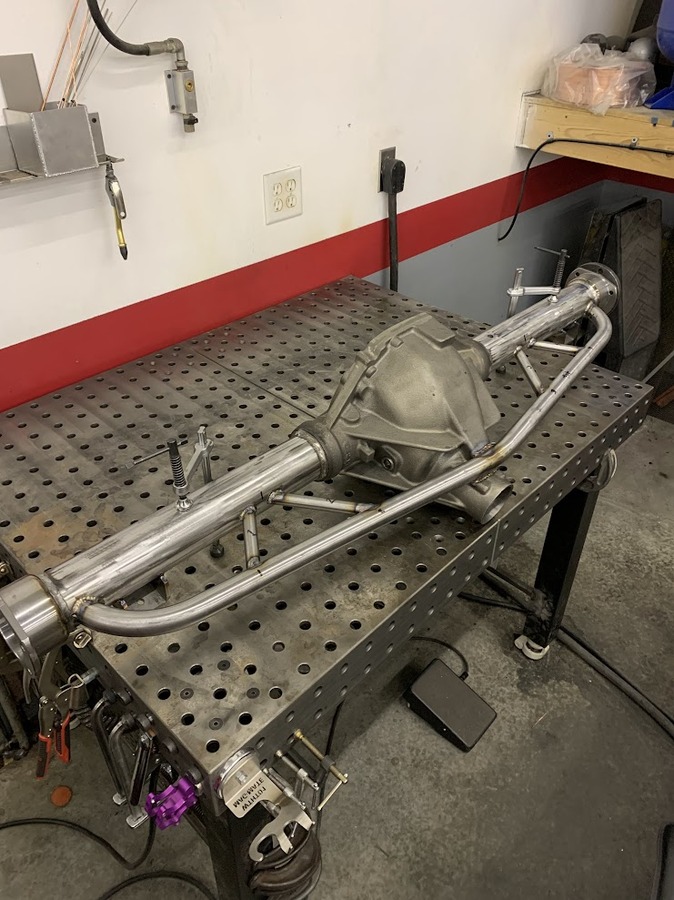

Go aftermarket, thicker casting and tubes, weld them all the way around and brace it like I did and you'll never worry about it again.
|
|
|
|
| Liked |
|
07-23-2025, 10:37 PM
|
#10 | |
|
Veteran Member
Join Date: Mar 2002
Location: Miles From Nowhere
Posts: 7,815
Likes: 2,903
Liked 5,120 Times in 1,951 Posts
|
Re: Welding tips and bracing of axle tubes for factory 12 bo
Quote:
__________________
"We are lucky we don't get as much Government as we pay for." Will Rogers |
|
|
|
|
 |
|
|
