Old 12-17-2014, 10:45 PM   #151
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

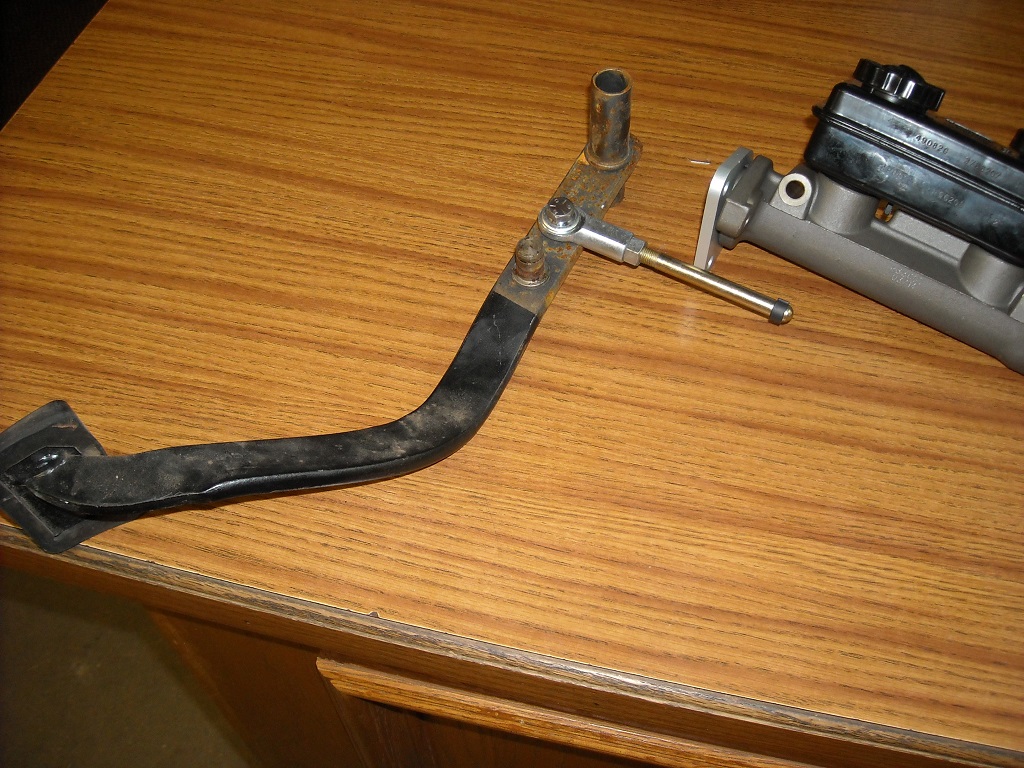

About brake pedal ratio, the change is a piece of cake for the Super 10. The large raised boss connected to the factory power brake booster.

The new rod end and Strange push rod kit give a 6:1 ratio for proper manual brake pressure. A simple matter of drilling a 3/8 hole 2" down from pedal pivot.
Attached Thumbnails
Click image for larger version

Name:	DSCN0163.JPG
Views:	391
Size:	451.1 KB
ID:	26602
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 12-17-2014, 10:47 PM   #152
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

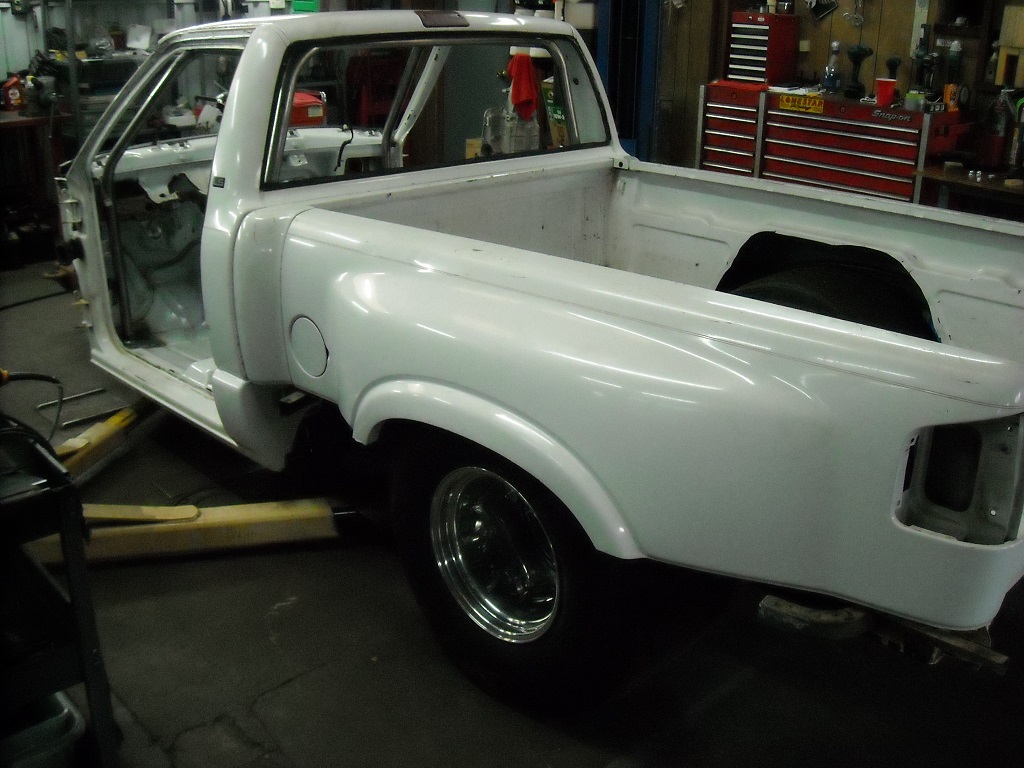

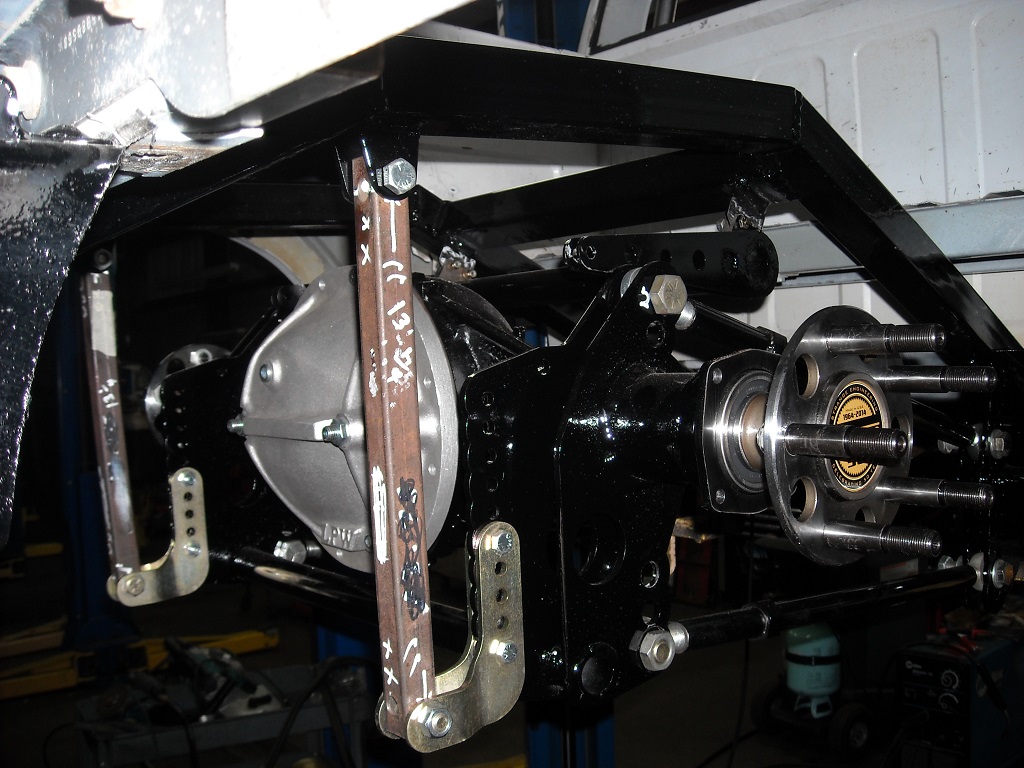

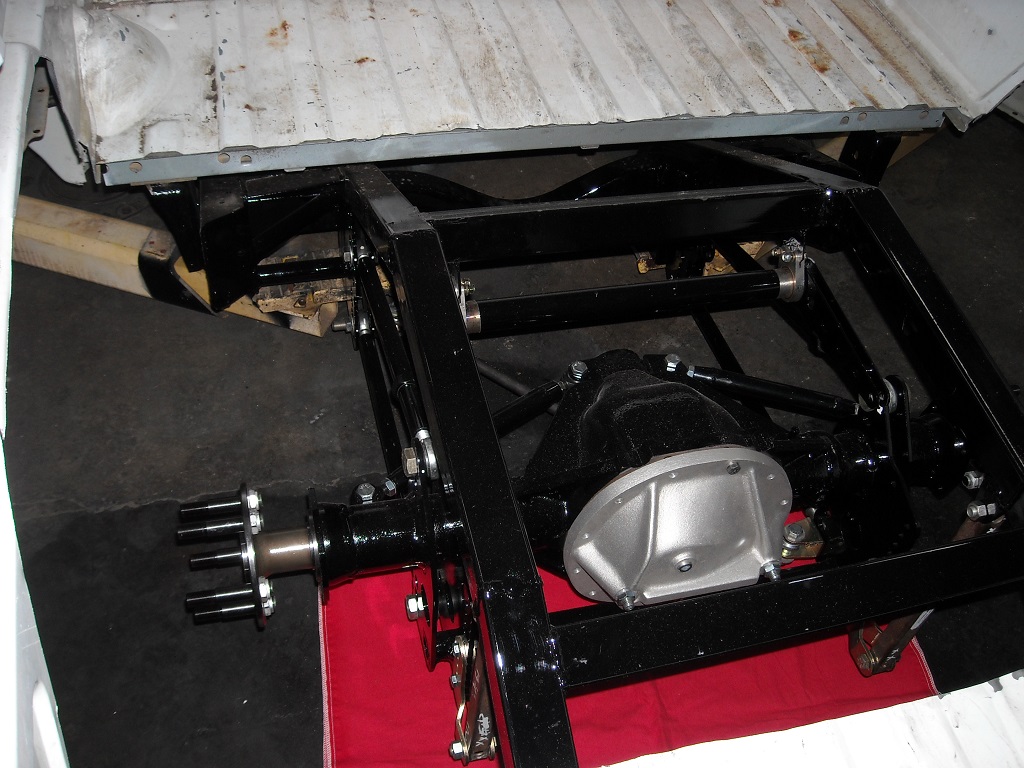

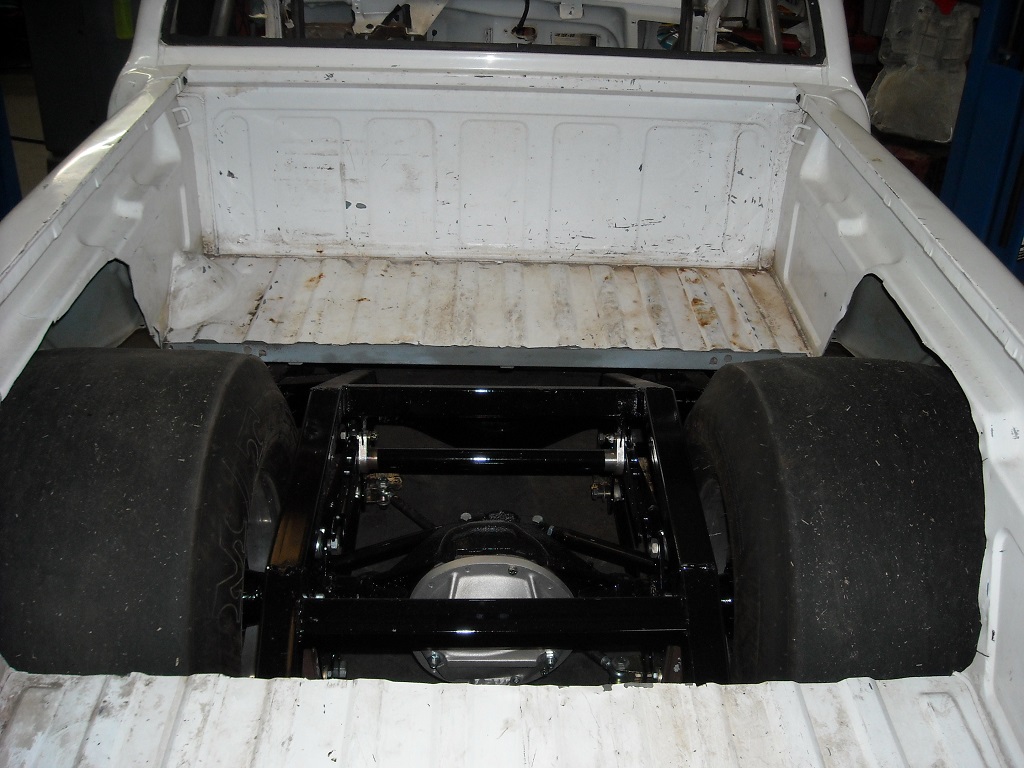

to close out today's post we have two shots of rear assembly with bed in place.
Attached Thumbnails
Click image for larger version

Name:	DSCN0167.JPG
Views:	409
Size:	365.2 KB
ID:	26603   Click image for larger version

Name:	DSCN0169.JPG
Views:	383
Size:	373.4 KB
ID:	26604
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 12-18-2014, 08:06 PM   #153
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

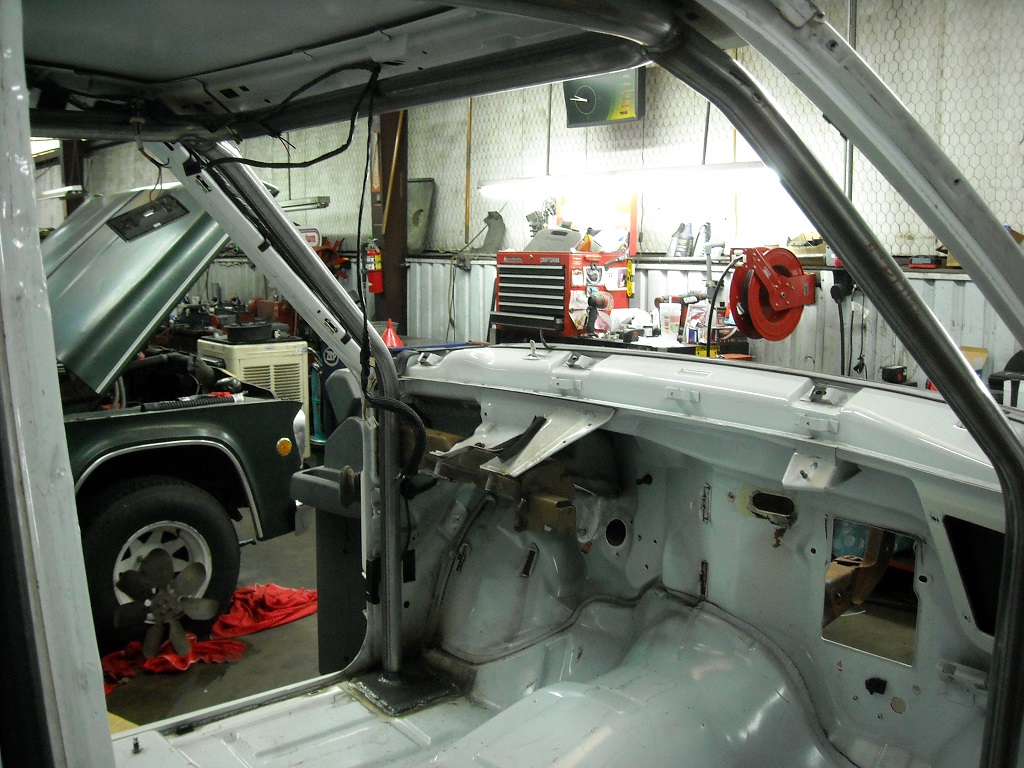

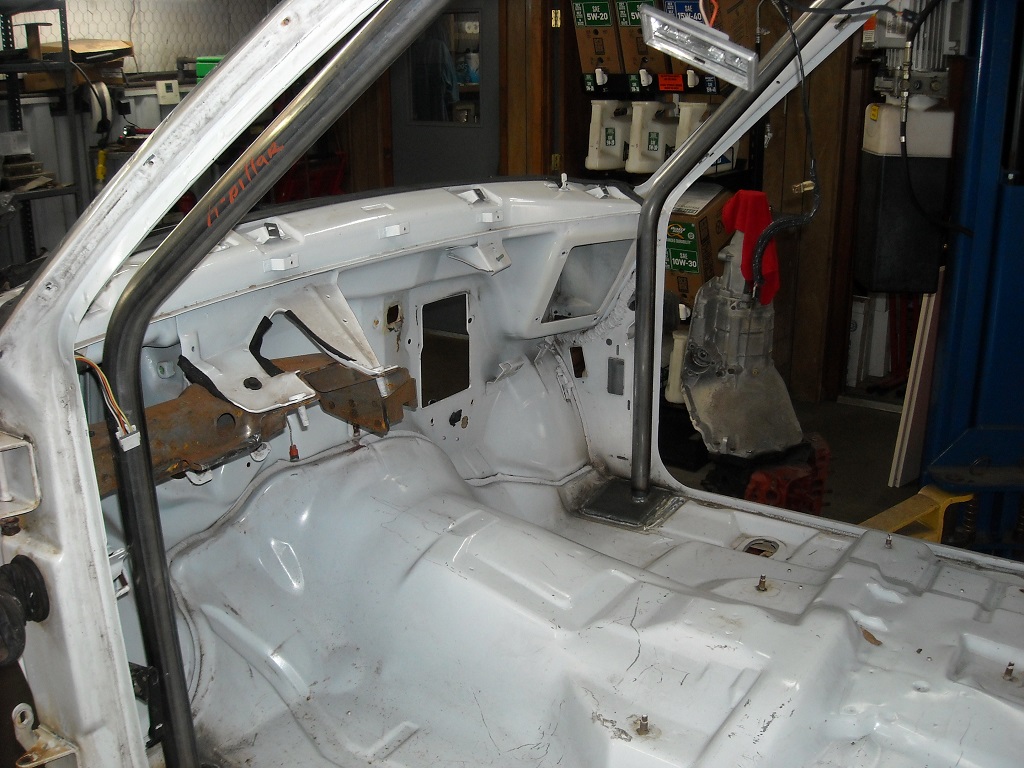

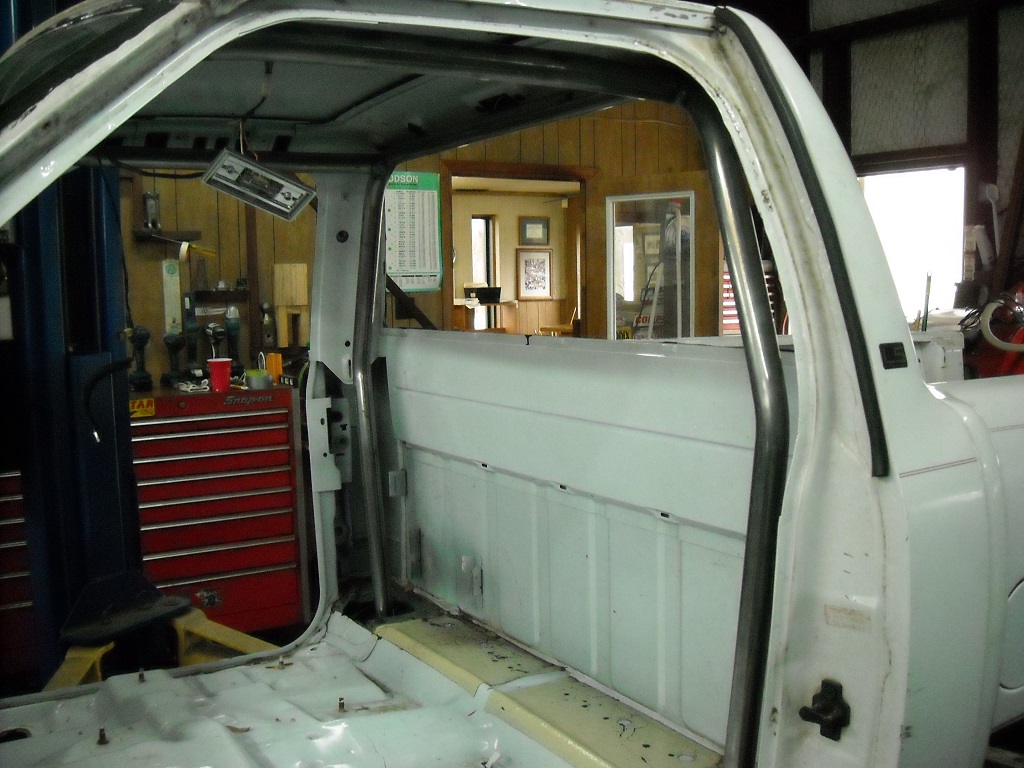

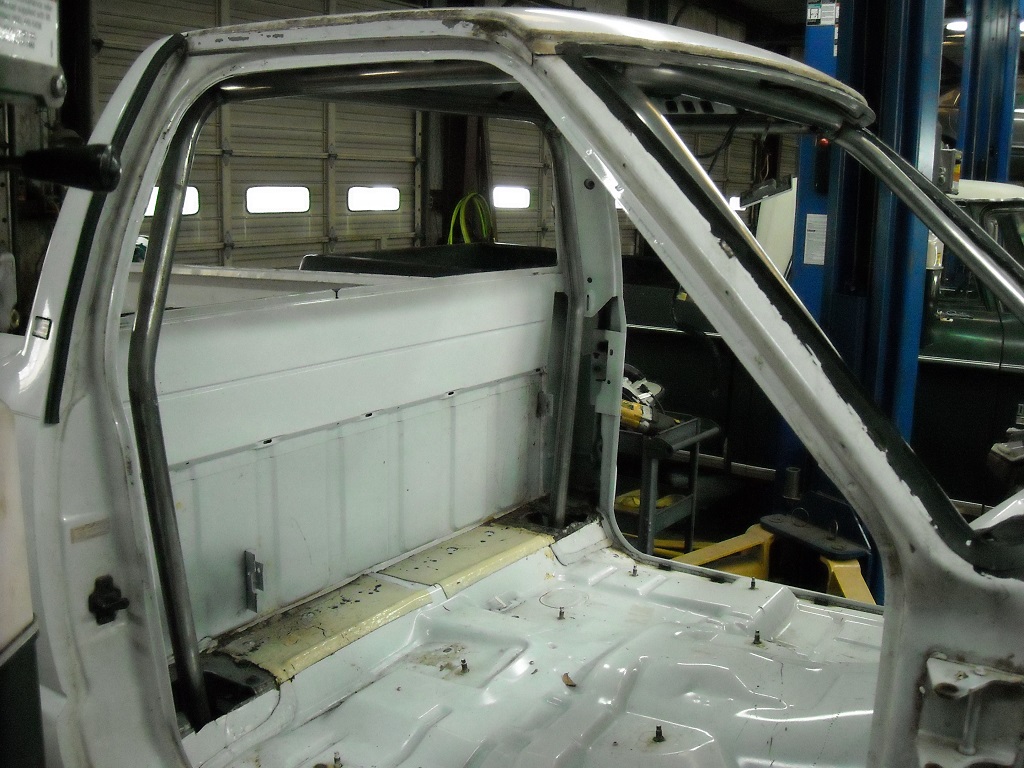

On the 18th day of Christmas good progress did result with roll cage bars in installed.

The middle half crew hit some good licks today. Roll bar, halo bar, A pillar bars installed and finished welded.
Attached Thumbnails
Click image for larger version

Name:	DSCN0174.JPG
Views:	454
Size:	432.5 KB
ID:	26609   Click image for larger version

Name:	DSCN0175.JPG
Views:	437
Size:	397.3 KB
ID:	26610   Click image for larger version

Name:	DSCN0176.JPG
Views:	426
Size:	376.6 KB
ID:	26611

Click image for larger version

Name:	DSCN0177.JPG
Views:	447
Size:	382.0 KB
ID:	26612
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 12-18-2014, 08:34 PM   #154
Jim Caughlin
Senior Member

Join Date: Mar 2002
Location: Woodburn, Or
Posts: 685
Likes: 83
Liked 805 Times in 245 Posts
Default Re: Woodfin's SS GT/TB construction series

Maybe I am not seeing your photos well enough but any car with a factory frame requires that the cage be welded to the frame. If I am seeing your photos correctly, it looks like you have plates welded to the floor, that is only legal on a unibody type chassis. Am I missing something?
Jim Caughlin is offline   Reply With Quote
Old 12-18-2014, 08:51 PM   #155
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

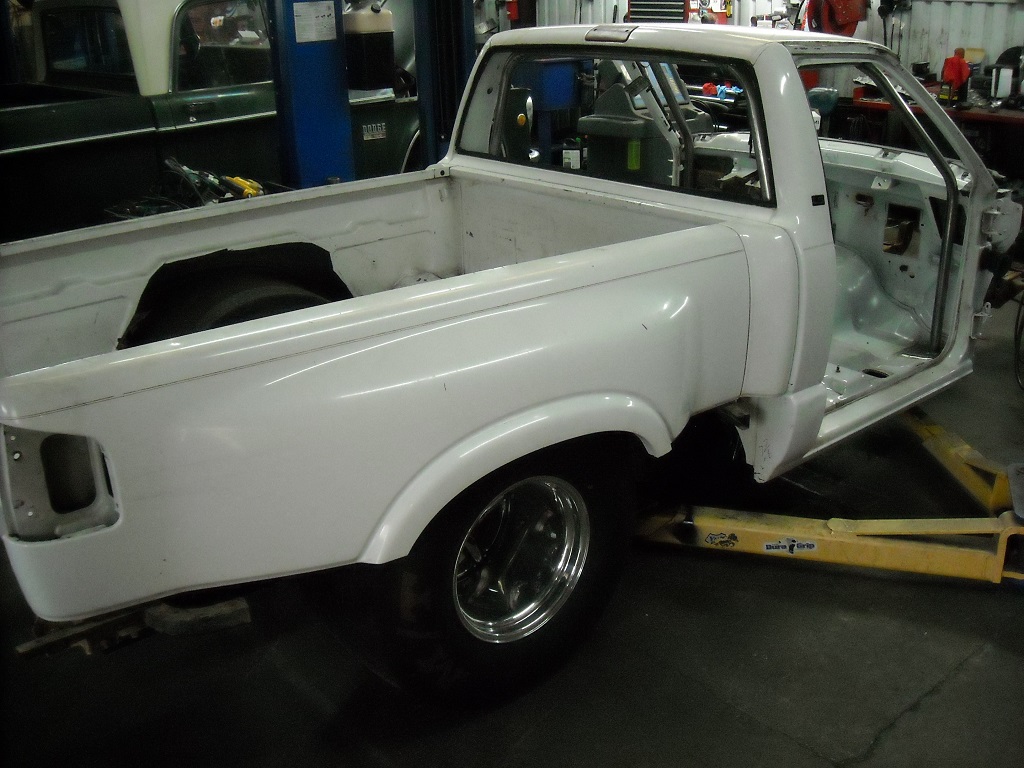

these 3 photos show the lower bed trim removed making ready for paint work. And the 32 x 14 M/T tucked in nicely
Attached Thumbnails
Click image for larger version

Name:	DSCN0171.JPG
Views:	395
Size:	351.8 KB
ID:	26613   Click image for larger version

Name:	DSCN0172.JPG
Views:	352
Size:	362.2 KB
ID:	26614   Click image for larger version

Name:	DSCN0173.JPG
Views:	353
Size:	365.7 KB
ID:	26615

__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 12-19-2014, 08:45 AM   #156
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

Jim, the main hoop legs are through the floor into the frame.

With the front A bars, because of the cab mount and frame location it worked out best to plate the floor and add an outrigger under the floor to frame. The frame turns inward before the A bar location.

In addition, the cab floor is "robust" and double thickness in that location.
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 12-19-2014, 09:24 AM   #157
Dwight Southerland
VIP Member

Dwight Southerland's Avatar

Join Date: Dec 2001
Location: Arkansas - In the middle of everything.
Posts: 2,001
Likes: 64
Liked 780 Times in 194 Posts
Default Re: Woodfin's SS GT/TB construction series

Is the cage mild steel or moly?
Dwight Southerland is offline   Reply With Quote
Old 12-19-2014, 12:48 PM   #158
Jim Caughlin
Senior Member

Join Date: Mar 2002
Location: Woodburn, Or
Posts: 685
Likes: 83
Liked 805 Times in 245 Posts
Default Re: Woodfin's SS GT/TB construction series

I had a customer that had a similar request, it was a frame car but he wanted to have the body removable. I sandwiched a plate top and bottom of the floorpan (bolted through) with the top plate for the cage and the bottom portion attached to the frame by 1 5/8 tubing. NHRA Tech was OK with this, the car tagged so I assume this method is acceptable.
Jim Caughlin is offline   Reply With Quote
Old 12-19-2014, 01:24 PM   #159
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

Dwight, mild steel
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 12-19-2014, 07:07 PM   #160
Keith 944
VIP Member

Keith 944's Avatar

Join Date: Feb 2006
Location: Dela-where?
Posts: 2,195
Likes: 1,162
Liked 1,885 Times in 578 Posts
Default Re: Woodfin's SS GT/TB construction series

Quote:
Originally Posted by Dragsinger View Post
About brake pedal ratio, the change is a piece of cake for the Super 10. The large raised boss connected to the factory power brake booster.

The new rod end and Strange push rod kit give a 6:1 ratio for proper manual brake pressure. A simple matter of drilling a 3/8 hole 2" down from pedal pivot.
I am sure you have addressed this, but make sure that rod cannot come out of the master cylinder. thanks for all the pics of your progress, I am loving this build
__________________
KEITH MAYERS
2-1/2 X somebody
Still many X nobody
Keith 944 is offline   Reply With Quote
