Air Induction

Randy Wells · 03-09-2022, 10:24 PM

The 80 Z/28 came with air induction air cleaner, I am not running one on my 80 I/S Z/28 now but, was able to find one with the hood ring. Any opinions on what kind of gains I might get with running one

Randy Wells
I/S 5628

Stan Weiss · 03-09-2022, 11:21 PM

What MPH will you be running? I don't think you will see much HP increase from Ram Air. Where most of your HP increase will come from is temperature difference from outside air and under hood air.

Stan

Randy Wells · 03-10-2022, 01:27 AM

Quote:

Originally Posted by Stan Weiss

What MPH will you be running? I don't think you will see much HP increase from Ram Air. Where most of your HP increase will come from is temperature difference from outside air and under hood air.

Stan

Right now 115 MPH, looking for more.

Randy

GTX JOHN · 03-10-2022, 02:16 AM

Our Mopar A bodies are NO faster with the Ram Air Hoods (Either years).
But I like how they look!
My 69 Hemi Roadrunner ran the same with the Hood intakes Duct Taped up!

Stan Weiss · 03-10-2022, 10:10 AM

First lets start with not all setups work the same. If we look at the best case (note these results are from a computer simulation).

60 Foot ET = 1.5314
330 Foot ET = 4.5364
1/8 Mile ET = 7.1430
1/8 Mile MPH = 93.9069
1000 Foot ET = 9.4068
1/4 Mile ET = 11.3221
1/4 Mile MPH = 118.0352

With Ram Air
60 Foot ET = 1.5313
330 Foot ET = 4.5335
1/8 Mile ET = 7.1353
1/8 Mile MPH = 94.1292
1000 Foot ET = 9.3926
1/4 Mile ET = 11.3013
1/4 Mile MPH = 118.4606

Stan

stock1080 · 03-10-2022, 10:37 AM

If i'm reading this correctly, If you claim the car a 80 Z/28 and don't have a hood with the cowl, It's not a Z/28, and only Z/28 had the 350, just my 2cents.

Randy Wells · 03-10-2022, 11:06 AM

Stan ,

I went ahead and bought a 1980 OEM air cleaner set up, will be going to Topeka on the 19th for TnT. I will do a back to back and see what happens. Will post results.
Thanks
Randy Wells
I/S

Rory McNeil · 03-10-2022, 02:57 PM

Be interesting to see if it does much, if anything. My buddys wife had a 80 ZZ28, and those 2 rectangular opening are quite small, and a fair distance away from the windshield, compared to say, a 69 Camaro Cowl Induction hood. And does anybody know if the 69 Cowl hood really does anything, besides give more space above the carb?

Jim Grande · 03-10-2022, 04:58 PM

I have run my Super Stock 69 Camaro with cowl scoop open and closed.
No difference!

Randy Wells · 03-20-2022, 09:32 PM

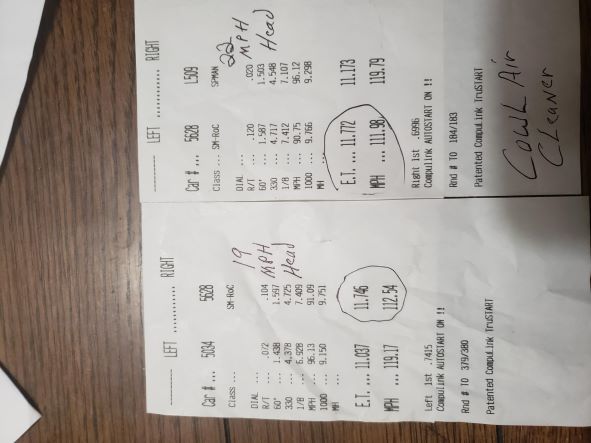

I did some testing today at Heartland Park Topeka, not a good day to test but did get my clutch dialed in. A steady head wind 19MPH gusting to 26. fastest run 11.746 @ 112.54 made 6 runs, slowest 11.82 @110.85, last run of the day with the air induction air cleaner 11.772 @ 111.98 with 22 MPH head wind, and there was no starting line prep, bunch of street cars tracking water to the line all day. May have to try the cowl induction again Thursday in Noble Ok.

Randy Wells
I/S 5628
