Default Re: Alternator help
Bob,

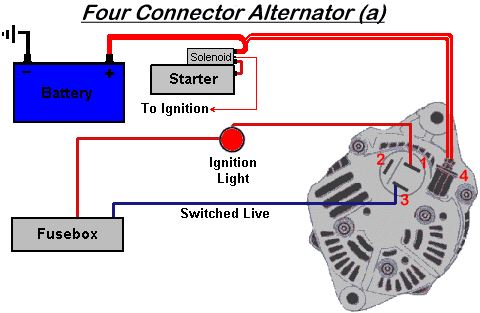

I believe this diagram may be what you are need for a Nippon Denso alternator.
Attached Thumbnails
Click image for larger version Name: ND 4 Wire type A.jpg Views: 275 Size: 28.0 KB ID: 19621
