Re: '67 Camaro E/SA redo


I applaud your experimentation with the acc. pump and have done a considerable amount of tinkering myself with very little success. That light spring scares me, though, as the purpose of the accelerator pump is to give a very quick shot of fuel before the main wells and/or power valves get "in the game". Squirter size is another consideration, but on a q-jet not particularly important.

A more important consideration is the choke pull off rate of release in conjuction with the air valve tension (and angle) and being able to adjust them quickly and easily.

Also, I have fought some q-jets that seem to defy all logic and not work in spite of a lot of effort. Sometimes, you just have to set them aside and get another core. Good luck, Ron.

Re: '67 Camaro E/SA redo

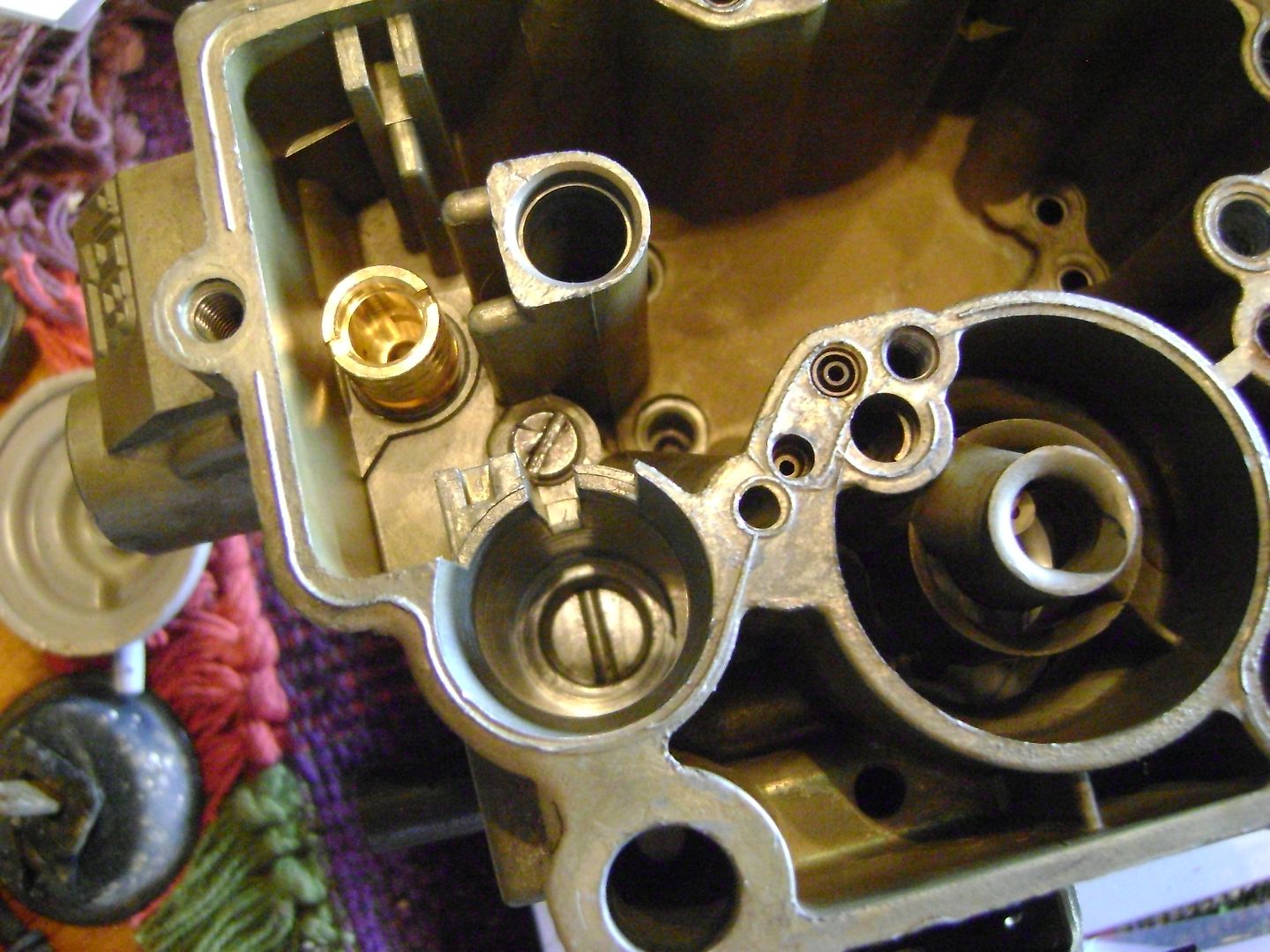

My train of thought is this - The duration spring is simply a safety device that comes into play when the throttle is slammed suddenly to WOT. With the given metering orifices the liquid in the wells become a solid obstacle at that point and the duration spring prevents binding/lock-up by allowing the spring to do the pushing of the pump cup instead of mechanical input of the linkage. My theory is to calibrate that spring rate in order to extend the time of discharge...no metering orifices have been altered at this point. What I have done is bore the well to .730 to increase the volume of fuel available and I'm using the larger pump from a 2G. I have been using .150 inlet needle/seat, but I'm thinking of dropping back to a .145.

http://i434.photobucket.com/albums/q...psb77db341.jpg

Cliff Ruggles is sending me some adjustable pull offs and the air door settings will be the normal trial and error scenarios. I'm just so happy to be at this point of actual tuning finally instead of breaking parts. :p

Re: '67 Camaro E/SA redo


great! you got ahold of him... cant wait to hear how it all works out...

Re: '67 Camaro E/SA redo

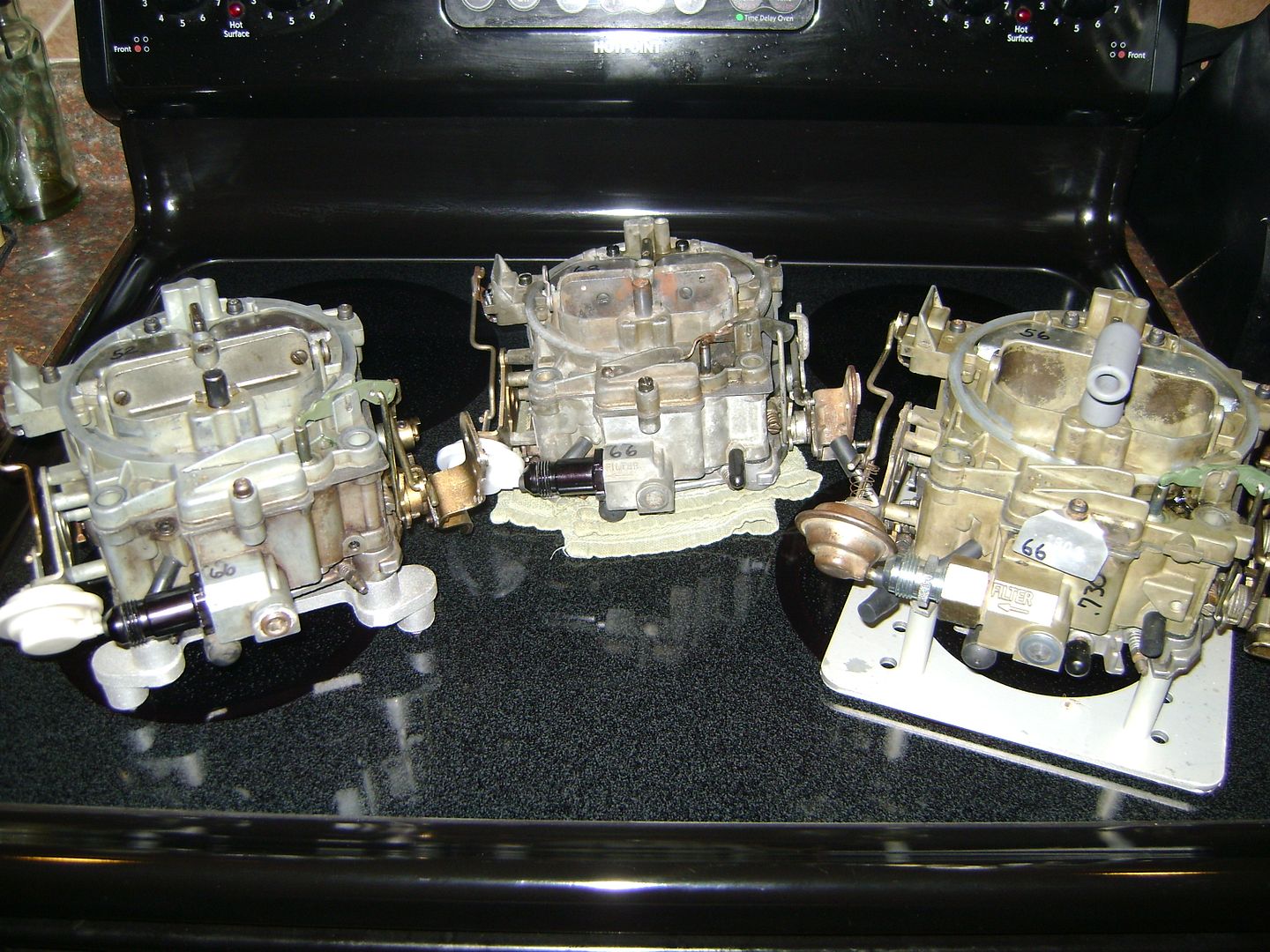

Well, I have three ready for battle...I hope. Taking the car to a bracket race July 5th and hopefully one will get down the track. :p

http://i434.photobucket.com/albums/q...psfc582d62.jpg

Re: '67 Camaro E/SA redo


Your secondaries about 1:1? Worked great on big cube engine... feels good on the 400, but 4.30 just aint enough gear...

Re: '67 Camaro E/SA redo


Brent - If you mean have I messed with the secondary opening rates that would be no.

Re: '67 Camaro E/SA redo

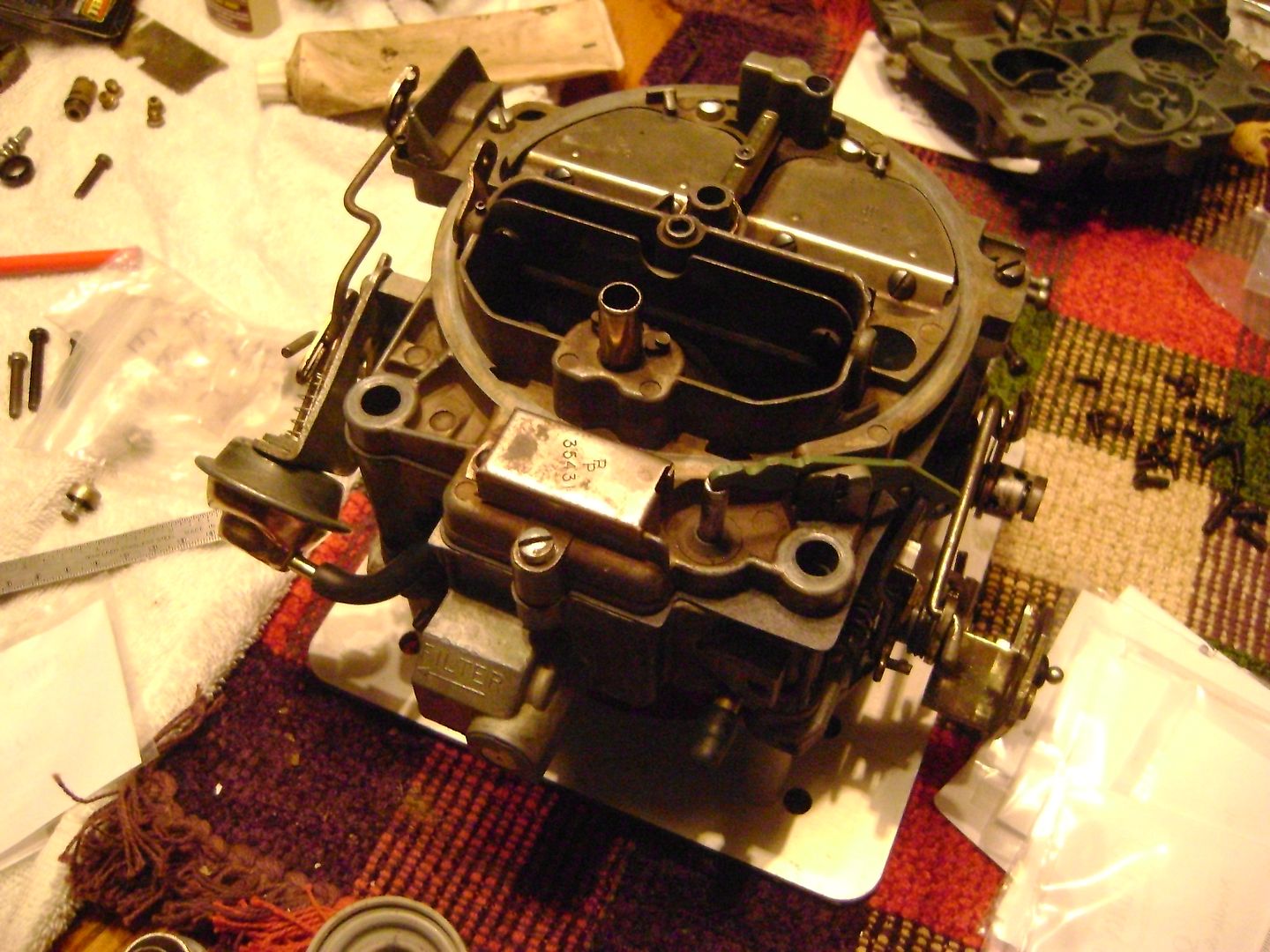

Nothing better to do today so I took the remainder of my spare Q-jet parts and cobbled together one more carb to take to the track. The main body is a 207 and the rest of it from carbs unknown....145 inlet, 67 primaries and CL rods on a K hanger. Would'nt it be a hoot if this turned out to be "the one" ? :p

http://i434.photobucket.com/albums/q...ps65dfa099.jpg

Going to attempt to tune out any air door bogs on our concrete apron outside the shop on all the carbs before heading to the track.

Re: '67 Camaro E/SA redo


I always lied a loose air door and fast pull off, as long as it don't bog you'll be fine. If it bogs tighten door like, or slow down pu off ti it goes away.

Re: '67 Camaro E/SA redo


I really saw a difference goin from standard linkage to almost 1:1 ... it was roughly .02-.025 in 60'...maybe a little more when the air was real good... i wouldnt go back the other way, again...it should really come out good, with the 4.88s ... Did you get some of Cliff's acc pumps?

Re: '67 Camaro E/SA redo


Semi-homemade on the pumps. I will have Cliff's pull offs in the morning.
