Listen to a story 'bout man named Phish

[Larry Hill]

Did the bearing caps have any shim stock between them?

The stuff in the pan could be cylinder block material where the rings plateaued the cylinder walls, just a guess.

[Spyphish]

All rod and main bearings had a 100thou spacer and one rod had one little brass shim left. She is wore out. Babbit still there so may mic and polish crank, repour rods etc and buy a shim kit from The Filling Station, clean it up, hone, ring. Chiity Chitty Bang Bang

I learned the cranks bend easy so they suggest spin it in a lathe and check runout. If bent, pry it back straight and roll on. Uncle Jed

[Kirk Morgan]

A place called Egge machine use to have parts for those engines. I my memory serves me correctly they had connecting rods that were converted for inserts. I took a restoration class in the 70s and toured there facility. .

[Spyphish]

Originally Posted by Larry Hill

I have four wooden spoke wheels off of a 1925 series 80 Pierce Arrow if you can use them.

May need them as some of these are weak. Tapered shaft with .380 keyway. I will get shaft outer inner measure with a mic. Next time your by them send a pick to stephenontheriver@yahoo.com
Thanks Phish

[Spyphish]

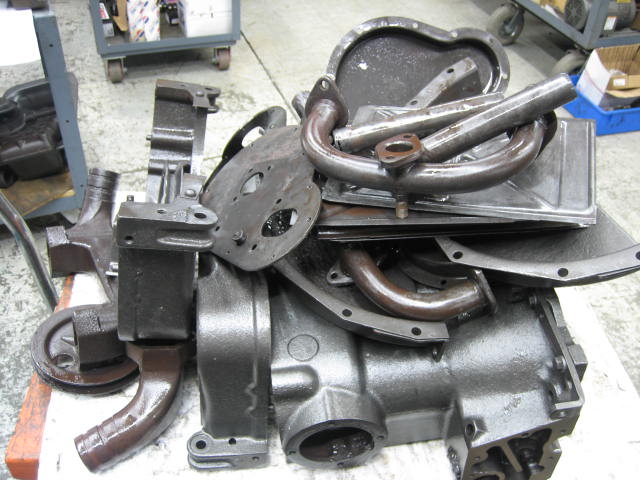

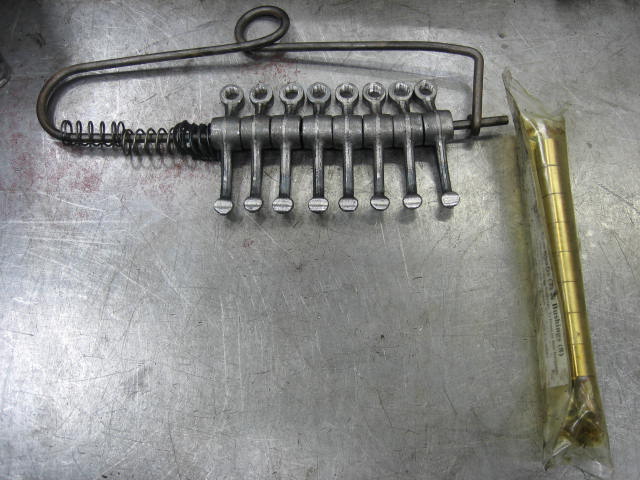

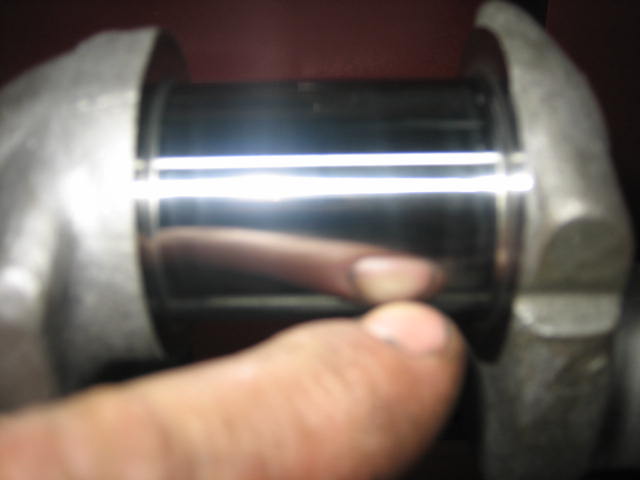

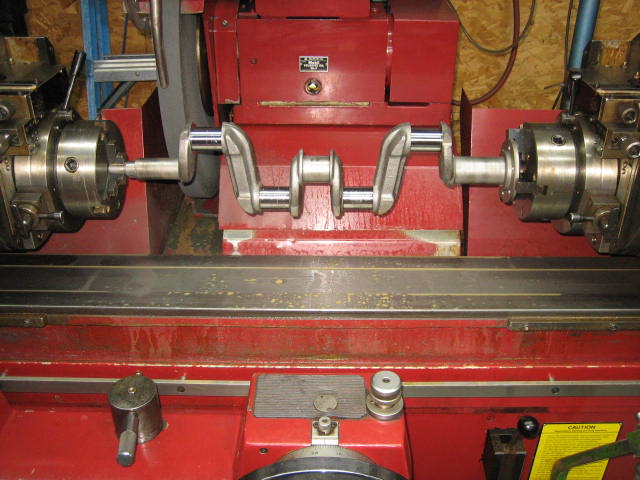

Pile of clean parts and turned crank.

[Spyphish]

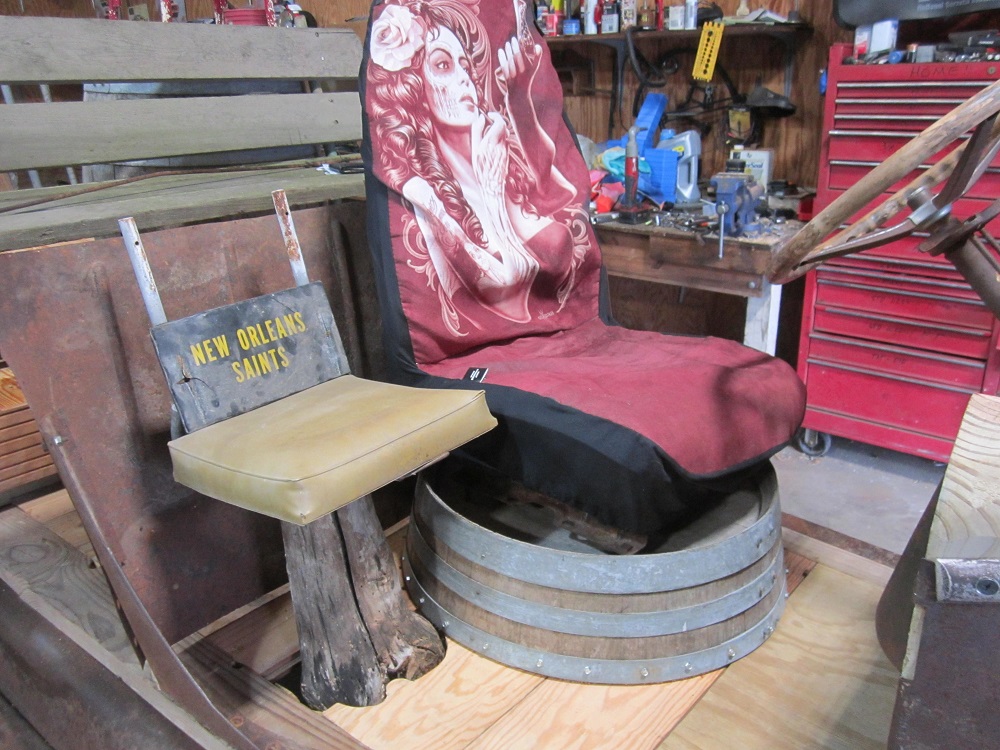

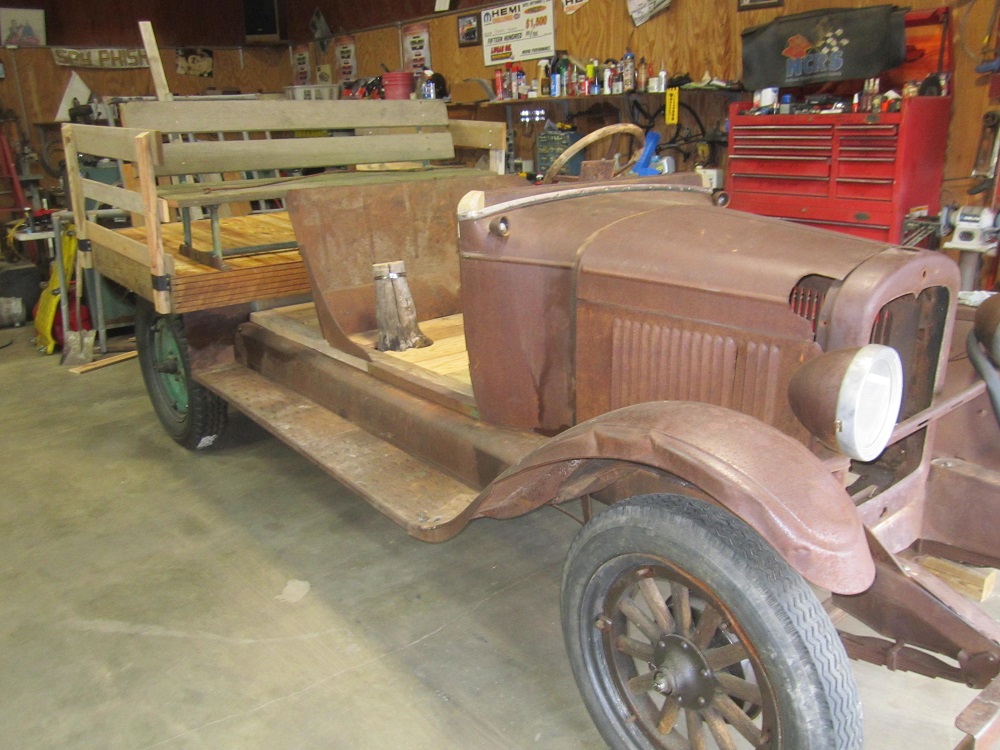

Bed and bench done. Plans are to use as pit car at USNATS Lord willing.
