Identify This Crank

FireSale · 04-25-2014, 04:55 PM

And win ....I'll think of something...

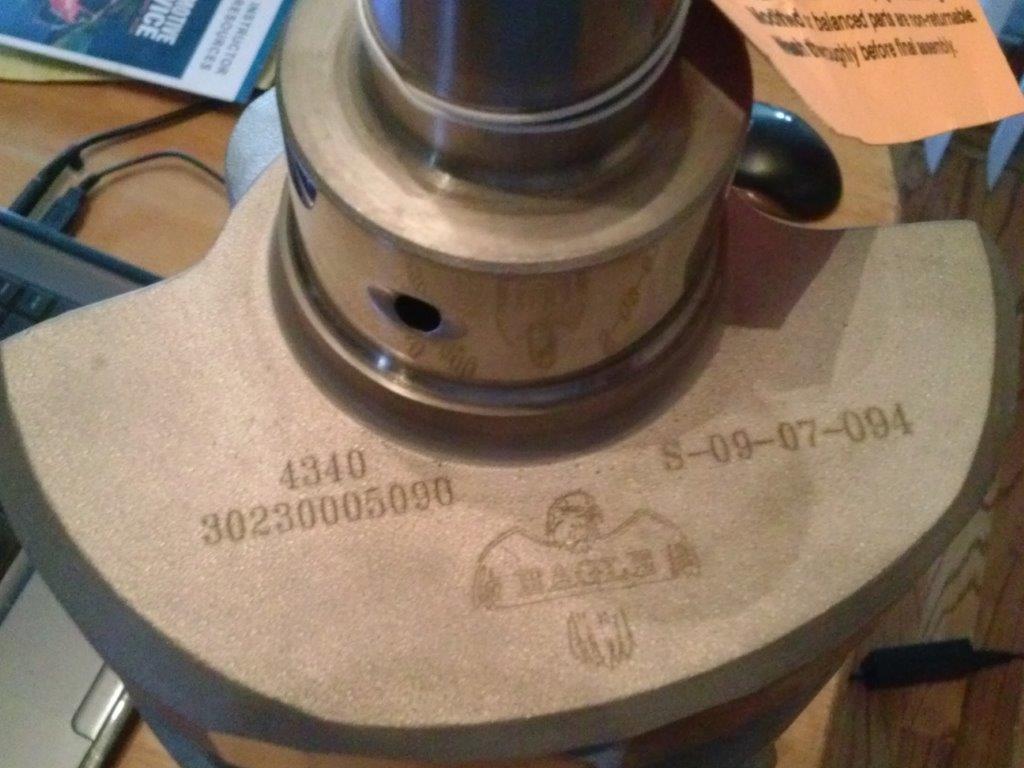

So I ordered this forged 4340 Eagle crank from an on-line dealer I won't mention at this point. The box label is 430230015090 which is the forged crank for sbf 302. The one in the box has 30230005090 - c stamped on the end. My machinist says It's cast and they insist it's the forged one I ordered and the number on the crank is a UPC code and not related to the box label.

Who's right? My machinist has a good reputation.

[IMG]

Eagle Crank by Designer Dale, on Flickr[/IMG]

Dale

russellauto1 · 04-25-2014, 05:07 PM

C means standard , Weight 4340 crankshaft. Google the part number and the Info will come up.

David Lee · 04-25-2014, 06:01 PM

Does it have the think parting line that most cast cranks have?

Alan Roehrich · 04-25-2014, 06:50 PM

They remove the parting line on their cranks in the prep process, at least on all of the cranks I purchased from them.

Only the forged 302 crank has the rod length (5.090) in the part number.

FireSale · 04-25-2014, 07:52 PM

I did Google it. This thread comes up in the search now...

I sent the photo to Eagle and they said the crank is cast. The "C" in the part number stands for cast. I ordered this one:

The Crank I Ordered at the Place That Isn't Listening to Me

The 300 is the stroke and the 5090 is the rod length. That's all they have in common.

Dale

BillK · 04-25-2014, 08:10 PM

Dale,
It would be a lot easier to tell with a picture taken from a little further away but I would trust what Eagle says. I have used a fair number of their cranks and have found some unusual part numbers. Its pretty easy to tell the cast from the forged ones from a little further away

fordteacherguy · 04-26-2014, 11:06 AM

Dale,

You have a PM.

Mike Taylor 3601 · 04-28-2014, 09:17 AM

forged should have .125 radius cast will be probaly .062
Mike Taylor 3601

njk53 · 04-28-2014, 03:11 PM

Look at the parting line. A cast crank will have a thin well defined parting line. A forged crank will have a wide parting line.

FireSale · 04-28-2014, 04:21 PM

Quote:

Originally Posted by njk53

Look at the parting line. A cast crank will have a thin well defined parting line. A forged crank will have a wide parting line.

By the time they are boxed, no Eagle crank has a visible parting line. They all look good and clean. Cast is stamped C and forged is stamped 4340 or whatever alloy it's made from.

Summit has today to respond to my last email and then it's phone time.

Dale
