Default Cyl honing questions?

What kind of fine stone should be used? Old school ring package with Speed-Pro
BR-18PF top...RBT-10 second...and SS-50U oil...on a 283 Chevy...

Any thoughts on how a Rottler HM-series machine compares to a Sunnen CK-10...
assuming BOTH being operated by very experienced machinists?
ss wannabee is offline   Reply With Quote
Old 05-07-2014, 09:58 AM   #2
ss wannabee
Senior Member

Join Date: Jun 2005
Posts: 663
Likes: 0
Liked 7 Times in 7 Posts
Default Re: Cyl honing questions?

Almost forgot...top ring is a plasma-moly.... One last question...is the Plateau finish
technique desireable for this particular combo?
ss wannabee is offline   Reply With Quote
Old 05-07-2014, 10:34 AM   #3
rickseeman
Member

rickseeman's Avatar

Join Date: Sep 2011
Location: Stuttgart, AR
Posts: 125
Likes: 0
Liked 2 Times in 2 Posts
Default Re: Cyl honing questions?

The Rottler HM is not an automatic cylinder hone. It is dependent on the operator for the stroking. This makes it much more operator dependent on quality. A CK-10 is automatic, it gives you perfect stroking speed every time, no matter how dumb you are. And it has automatic feed with a load meter to keep your stone load consistent. A good man on a HM could do it, but he would have to be a man that has bonded with his HM. Everybody recommends a plateau finish now a days. The Speed Pro targets for Ra, Rz, Rpk and Rvk are easily achievable assuming your man has a profilometer. They will go nearly to size with 280 and then give it some 400 to knock off the peaks and give it the plateau.

Last edited by rickseeman; 05-07-2014 at 12:51 PM.
rickseeman is offline   Reply With Quote
Old 05-08-2014, 07:24 AM   #4
carl hinkson
Member

Join Date: Feb 2007
Location: NORTHEAST
Posts: 287
Likes: 1
Liked 18 Times in 10 Posts
Default Re: Cyl honing questions?

Here is the honing procedure I use a good hone is a must.

I use a lot softer stones then most guys honing out there, The biggest trick to honing is to use the least amount of pressure to get the job done which reduces the heat build up and the other advantage is less cylinder flexing with less feed pressure.

The last .004 I use the 412 stones in and take out .001 at a time to keep the heat to a minimum the last .001 I go to the 512 stones down to the .0005 the last .0005 I go to the 623 stone. To plateau hone I use the C30-CO3-81 stone on OEM blocks I use 4 strokes and the harder blocks I go 6 strokes.

Different blocks may require different feed pressures for the proper finish.

I build a lot of endurance engines (circle track) and a 400 finish does not work very well in these applications as some engines now I don't see for 2 or three years.

Been over my honing procedure with Matt at Total seal he says its spot on.

So far never had any complaints with what I have sent out the door for cylinder wall finish and its been tested many years now and proven.

I really enjoy when guys tell me they can do the same thing with there servo quip hones

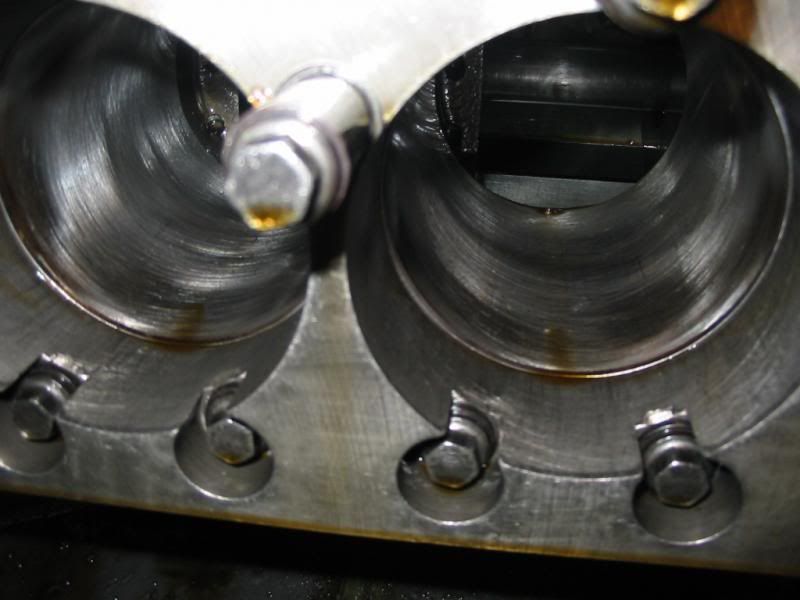

Here is a thread from another site on plate honing you can see the shadows und the bolt holes and the cylinders measured .004 distortion.

Quote:
Originally Posted by CNC BLOCKS
This a perfect example of why plate honing is a m must along with using a good hone.

This engine is a 604 GM crate circle track engine I think this block was honed once as the bores were 4.0015 Had an old time racer 78 years old that raced for many years witness this and was amazed.

This class can only go with a custom .005 over piston made by Mahle, After bolting the plate on and making a couple of strokes with the 412 stones it was clear that there was a reason the ring land between the 1st and 2and ring shows signs of carbon or poor ring seal. There was .004 distortion form Low to high





You wouldn't see as much distortion with a Bowtie, Dart or World block, But I will say the getting close or at max bore on one these block you will see distortion. It does make a difference studs VS bolts.
