Default Fuel Check with fuel injection.

Now if I decide to upgrade my car to true stocker status at a later date. I will have to do this. It's easy to set up a check valve with a carb equipped stocker. How do you do it with a fuel injected car.

This engine has a fuel regulator mounted onto the end of the fuel rail. Can you tap into that and put a check valve in before the regulator?

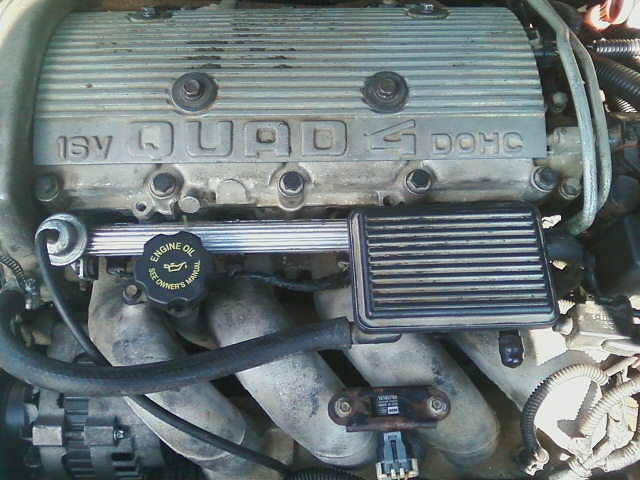

Here's a picture of the engine. Open to ideas and suggestions.
Attached Thumbnails
Click image for larger version

Name:	quad engine.jpg
Views:	311
Size:	144.1 KB
ID:	12579
__________________
Robert Swartz - Swartz & Lane 66 Chevy II Pro
95 Achieva EF/SA, 78 Mustang II U/SA (work in progress) #354 stock
Robert Swartz is offline   Reply With Quote
Old 07-09-2012, 10:34 PM   #2
KRatcliff
Senior Member

Join Date: Sep 2011
Posts: 763
Likes: 75
Liked 524 Times in 141 Posts
Default Re: Fuel Check with fuel injection.

Just undo a line from the fuel rail and put on one of these. Be sure an hold the cup tight.

KRatcliff is offline   Reply With Quote
Old 07-09-2012, 11:01 PM   #3
Ed Wright
Veteran Member

Ed Wright's Avatar

Join Date: Mar 2005
Location: Sand Springs, OK
Posts: 8,132
Likes: 896
Liked 390 Times in 170 Posts
Default Re: Fuel Check with fuel injection.

My cheap-azzed way was to plumb in a lawn mower fuel tank valve from NAPA and a weather proof starter button that grounds the fuel pump relay when pressed. Both front/left side under the hood. Open the valve, press the button & fuel flows. You can spend more on nice valves. I rigged my deal up before I saw the fancy stuff. Mine works just as well. I don't have a show car anyway.
__________________
Ed Wright 4156 SS/JA
Ed Wright is offline   Reply With Quote
Old 07-10-2012, 12:29 AM   #4
partsbob67
Member

Join Date: Apr 2005
Location: rohnert park,ca
Posts: 414
Likes: 11
Liked 79 Times in 11 Posts
Default Re: Fuel Check with fuel injection.

i hooked mine up to the schrader valve where you hook up the pressure gauge. jegs has a nice adaptor. it comes with their fuel pressure gauge for a 5.0 mustang.
__________________
bob beals 7244
partsbob67 is offline   Reply With Quote
Old 07-10-2012, 08:19 AM   #5
buzzinhalfdozen
Senior Member

Join Date: Sep 2006
Location: Bellevue Ohio
Posts: 984
Likes: 0
Liked 11 Times in 8 Posts
Default Re: Fuel Check with fuel injection.

Most of the Quads didn't have a pressure tap. If it does then get the adapter. If not I've drilled and tapped the fuel rail for 1/8 NPT then install any type valve. I'd like to give a big old thank you to GM for not providing a fuel pressure tap on alot of their engines since that's the first thing I check on a driveability issue. Joe
__________________
Joe Buchanan SS/BX 3117
buzzinhalfdozen is offline   Reply With Quote
Old 07-10-2012, 10:06 AM   #6
art leong
VIP Member

Join Date: Dec 2001
Location: Richmond Hill, Georgia
Posts: 2,003
Likes: 0
Liked 1 Time in 1 Post
Default Re: Fuel Check with fuel injection.

I have the press and pull fitting on my fuel rail. I just take the line off and I have a remote start panel in the engine compartment.
It's worked for 6 years so far.
__________________
Art Leong 2095 SS
art leong is offline   Reply With Quote
Old 07-10-2012, 01:54 PM   #7
Rob Lloyd
Junior Member

Join Date: Apr 2005
Location: Whitmore Lake, MI
Posts: 60
Likes: 0
Liked 0 Times in 0 Posts
Default Re: Fuel Check with fuel injection.

The older EFI cars usually have 2 fuel lines - supply (high pressure ~40-50psi) and return (low pressure only a couple psi). I just plumbed a regular pull-valve (from Moroso I think?) into the return line. I take fuel with the engine running. No spewing.
__________________
Rob Lloyd 3728 BF/S
Rob Lloyd is offline   Reply With Quote
Old 07-10-2012, 02:12 PM   #8
Shawn S.Kvaas
Junior Member

Join Date: Mar 2008
Location: Pitt Meadows, B.C.
Posts: 47
Likes: 0
Liked 1 Time in 1 Post
Default Re: Fuel Check with fuel injection.

Be careful with that Rob, your not suppose to have a car running unless someone is in the drivers seat.
Shawn S.Kvaas is offline   Reply With Quote
Old 07-10-2012, 04:41 PM   #9
LNorton
Senior Member

LNorton's Avatar

Join Date: Apr 2004
Location: RacerTees.com
Posts: 505
Likes: 0
Liked 4 Times in 2 Posts
Default Re: Fuel Check with fuel injection.

I carry a line from a set of A/C gauges in the trunk. Same fitting as the schrader and has a shut off valve. Hook it up just for fuel check.
__________________
Lee Norton - N229 STK
IHRA H/FIA - NHRA O/SA
RacerTees.com
LNorton is offline   Reply With Quote
Old 07-11-2012, 04:30 PM   #10
Robert Swartz
Senior Member

Robert Swartz's Avatar

Join Date: Aug 2008
Location: Nineveh, Indiana
Posts: 512
Likes: 0
Liked 3 Times in 3 Posts
Default Re: Fuel Check with fuel injection.

Thanks for the replys. I'm certainly a ways off from needing it yet. Just planning ahead.

Joe,

Your suggestion probably is best. There really is no way to hook to the regulator. I'll probably just search around and find another fuel rail and drill and tap it, add a valve. Problem solved.
